Party Wall Surveying for Mid‑Terrace Retrofits: Heat Pumps, External Insulation and the Party Wall Act

Roughly 7 million mid-terrace homes in England and Wales are now in the crosshairs of the UK's decarbonisation agenda — and the vast majority share at least two party walls with neighbours who never consented to becoming part of a retrofit project. As heat pumps, external wall insulation (EWI), internal wall insulation (IWI), and mechanical ventilation systems are bolted, drilled, and fixed into shared Victorian and 1930s masonry, a quiet legal crisis is building street by street. Party Wall Surveying for Mid‑Terrace Retrofits: Heat Pumps, External Insulation and the Party Wall Act sits at the intersection of green building policy and property law — and understanding it could save homeowners thousands of pounds in disputes, delays, and remedial work.

Key Takeaways 📋

The Party Wall etc. Act 1996 is frequently triggered by "green" retrofit works — including heat pump bracket fixings, EWI at boundary junctions, and new concrete pads within 3–6 metres of a party wall foundation.
Up to four separate Party Wall notices may be required for a single mid-terrace retrofit, depending on the scope of works and the number of shared boundaries. [8]
The building owner — not the contractor — is legally responsible for serving valid notices before works begin.
RICS' Residential Retrofit Standard (1st edition, 2024) now formally requires chartered surveyors to identify party wall risks as part of retrofit due diligence. [9]
Failing to budget for party wall surveying fees at the feasibility stage can jeopardise EPC upgrade timelines and expose homeowners to neighbour disputes and civil liability.

Why Green Retrofits Are Creating a Party Wall Problem

The push to decarbonise Britain's housing stock is accelerating fast. In 2026, tightening EPC requirements and government incentive schemes are driving a surge in heat pump installations, EWI, IWI, and MVHR (mechanical ventilation with heat recovery) upgrades across dense urban terraces [2]. The problem? The budgets quoted for these works — often £5,000–£8,000 for a heat pump upgrade or around £800 for cavity top-ups — routinely exclude the cost of professional party wall surveying and neighbour-protection measures [1].

This creates a dangerous gap. Victorian and Edwardian terraces were built with shared masonry walls that are legally protected under the Party Wall etc. Act 1996. When a homeowner drills into that wall to mount a heat pump bracket, fixes EWI boards across a boundary junction, or lays a concrete pad within close proximity to a shared foundation, they may be triggering statutory obligations they are completely unaware of.

💬 "The retrofit surge is generating a corresponding surge in party wall disputes — particularly where 'minor' green upgrades are assumed to sit below the Act's threshold." — Industry commentary, 2026 [1]

Specialist surveyors are reporting a growing number of cases where units have been bolted to shared walls without any notice being served or agreement being reached — leaving homeowners exposed to injunctions, claims for damage, and costly remedial works [1].

When Does the Party Wall Act Apply to Retrofit Works?

Understanding the triggers is the first step. The Party Wall etc. Act 1996 covers three main categories of work, each requiring a different notice form:

Notice Type	Relevant Retrofit Scenario	Minimum Notice Period
Party Structure Notice	Cutting into, drilling, or loading a shared wall (e.g., heat pump brackets, cable runs, condensate drains)	2 months
Line of Junction Notice	Building on or at the boundary line (e.g., EWI extending to the party wall upstand)	1 month
Adjacent Excavation Notice	New foundations or concrete pads within 3–6m of a neighbour's foundations	1 month

Heat Pumps and the Party Wall Act

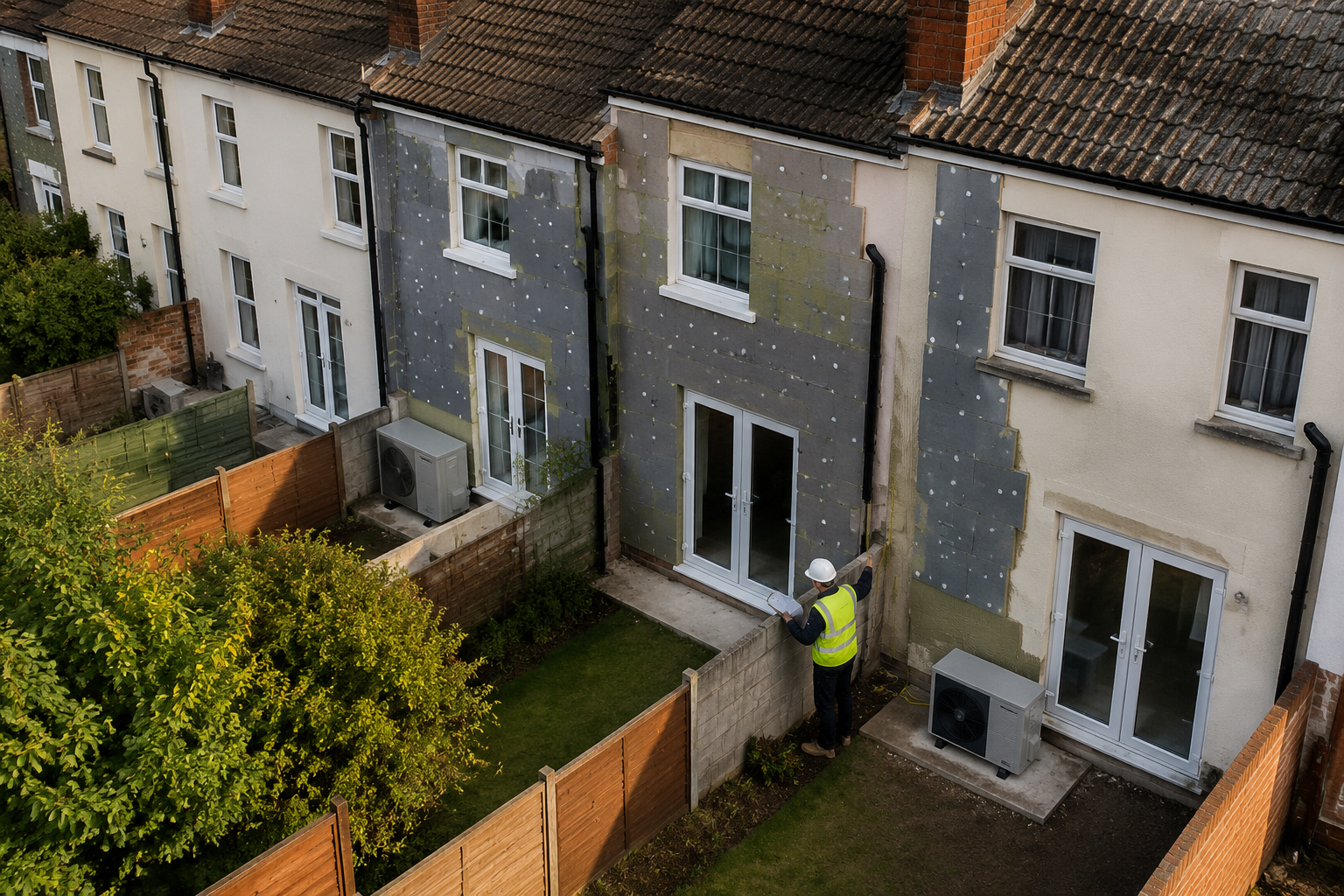

Air-source heat pump (ASHP) installations are the most common trigger in 2026 retrofit projects [8]. Even when a unit appears to be mounted on a "rear" wall, surveyors must check whether that wall is legally a party fence wall or a party wall under the Act. In tight mid-terrace plots with rear alleyways or shared access paths, this distinction is frequently misunderstood.

The following ASHP-related works are increasingly treated as notifiable under Section 2 of the Act [1]:

🔩 Drilling or cutting for bracket fixings into shared masonry
🔌 Running cable conduits or refrigerant pipes through or along a party wall
💧 Routing condensate drains through a shared structure
🪨 Laying a new concrete base pad within 3 metres of a neighbour's foundations

For detailed guidance on what constitutes notifiable work, the guidance for party wall awards sets out the legal framework clearly.

External and Internal Wall Insulation

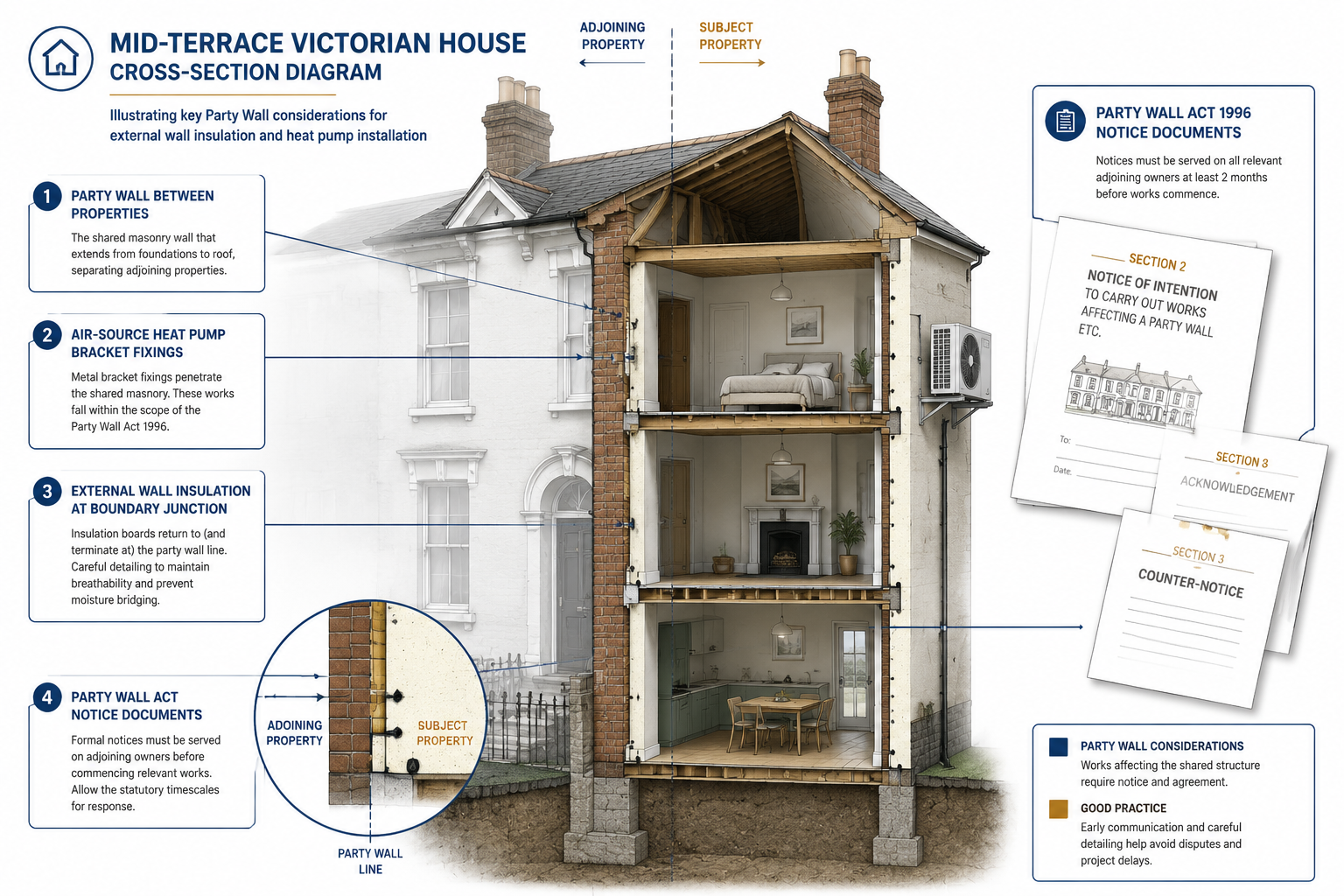

EWI and IWI present a different but equally significant set of triggers. When EWI boards are fixed to the rear or side elevation of a mid-terrace, they must be carefully detailed at the party wall upstand and roofline junction. Poorly designed or unnotified EWI can:

Create thermal bypass between properties
Trap moisture at the party wall junction, increasing condensation and mould risk in the neighbouring property [6]
Alter fire compartmentation at the boundary — a critical concern following Fire Safety Act changes [2]

Government IWI guidance explicitly warns that returning insulation along party walls can make a neighbour's home colder and increase condensation risk if their property is under-heated or poorly ventilated [6]. This is not just a technical problem — it is a legal one, because the building owner is responsible for any damage caused to a neighbour's property as a result of notifiable works. Understanding damage to property in party wall disputes is essential reading for any homeowner planning EWI or IWI.

For a comprehensive overview of insulation in a party wall context, specialist guidance is available that covers both the legal and technical dimensions of these works.

How Many Notices Does a Mid-Terrace Retrofit Actually Need?

This is where many homeowners are caught off guard. A mid-terrace property has at least two shared walls — one with each neighbour. A comprehensive retrofit touching both elevations, the rear boundary, and the roof junction could require up to four separate Party Wall notices [8]:

Party Structure Notice to the left-hand neighbour (works to shared left-hand wall)
Party Structure Notice to the right-hand neighbour (works to shared right-hand wall)
Line of Junction Notice to the rear neighbour (if EWI extends to the rear boundary)
Adjacent Excavation Notice to any affected neighbour (if a heat pump pad is excavated near shared foundations)

Each notice must be served on the correct adjoining owner — which may not be the occupier. If the neighbouring property is leasehold, both the freeholder and the leaseholder may need to be served. A schedule of condition for leasehold properties is often a necessary part of the process to protect all parties.

What Happens If a Notice Is Not Served?

Proceeding without serving valid notices is a serious legal risk. A neighbour can apply to the courts for an injunction to stop the works — even after they have started. The building owner may also face claims for any damage caused, with no legal framework in place to resolve disputes efficiently.

The consequences of a party wall notice not being served can include costly delays, legal fees, and damage to neighbourly relations that outlast the retrofit itself.

The Role of Party Wall Surveying for Mid‑Terrace Retrofits

What a Party Wall Surveyor Actually Does

A party wall surveyor's role in a retrofit project goes well beyond paperwork. Key responsibilities include:

Assessing whether works trigger the Act — including less obvious scenarios such as heat pump pads near shared foundations
Drafting and serving the correct notices on all affected adjoining owners
Preparing a Schedule of Condition before works begin, recording the existing state of the neighbouring property to protect both parties in the event of a dispute [7]
Agreeing and issuing a Party Wall Award — the legally binding document that sets out how works are to be carried out, working hours, and the rights and responsibilities of each party
Monitoring works and resolving any disputes that arise during the project

A thorough schedule of condition for party wall works is one of the most important protective steps a building owner can take. It creates a photographic and written record of the neighbour's property before works begin, making it far easier to resolve any later claims about damage.

RICS Residential Retrofit Standard: Raising the Bar

The RICS Residential Retrofit Standard (1st edition, March 2024) has formalised the expectation that chartered surveyors must identify party wall risks as part of retrofit instructions and reports [9]. The Standard requires surveyors to consider:

All party wall structures within the scope of the retrofit
All fixed plant and services — including heat pumps, MVHR units, and solar panel mounting systems
The potential for unintended consequences at party wall junctions, including altered heat loss, moisture dynamics, and fire compartmentation [9]

This raises the bar for professional liability. A chartered surveyor who overlooks party wall risks in a retrofit design for a terrace could face a professional negligence claim — making thorough party wall surveying not just good practice, but a professional obligation.

PAS 2035 and Thermal Performance at Party Walls

Assessors working to PAS 2035 are also expected to account for party wall thermal performance in heat-loss calculations. Adding EWI or IWI to a mid-terrace changes the thermal dynamics at the party wall junction — potentially making those walls colder, altering moisture movement, and affecting the sizing of the heat pump system [6][7].

The National Retrofit Hub's 2025 Pattern Book highlights the need to inspect embedded timbers and support plates in party wall zones before adding insulation — structural elements that are easily overlooked but can be critically important in older terraces [7].

Practical Steps for Homeowners Planning a Mid-Terrace Retrofit

Before Works Begin ✅

Commission a pre-retrofit survey from a chartered surveyor experienced in both retrofit and party wall matters. A building survey can identify structural and party wall risks before any design work is committed to.
Map all shared boundaries — including rear alleyways, shared access paths, and any boundary structures that could be affected by EWI, heat pump pads, or cabling.
Identify all adjoining owners — including freeholders of leasehold properties — and confirm who needs to be served with notices.
Factor party wall costs into the budget from day one. Surveyor fees, notice periods, and potential award preparation costs should be included in the feasibility assessment.
Allow for notice periods — a minimum of one to two months before works can legally begin, depending on the notice type.

During and After Works ✅

Ensure a Schedule of Condition is prepared and agreed before works start.
Keep records of all works carried out, including any deviations from the agreed Party Wall Award.
If a neighbour raises concerns, engage a party wall surveyor promptly — early intervention almost always costs less than a formal dispute.

⚠️ Remember: The building owner — not the contractor, installer, or retrofit coordinator — is legally responsible for serving valid Party Wall notices. This responsibility cannot be delegated away.

Common Misconceptions About Party Wall Surveying and Retrofits

"My heat pump is going on the rear wall — it has nothing to do with the party wall."
Not necessarily true. If the rear wall is a party fence wall, or if the installation involves drilling through shared masonry or laying a pad near shared foundations, the Act may still apply [1][8].

"The installer said I don't need a party wall notice."
Contractors are not qualified to make this determination. Only a chartered party wall surveyor can properly assess whether works trigger the Act.

"My neighbour is fine with it — do I still need a formal notice?"
Yes. A neighbour's verbal agreement is not legally sufficient. A formal notice must be served, and the neighbour must respond in writing. If they consent, works can proceed without a formal Award. If they dissent or fail to respond within 14 days, surveyors must be appointed.

"EWI is just cladding — it won't affect the party wall."
EWI at a party wall junction requires careful fire-stopping and moisture detailing. Without proper design and notification, it can create fire safety and damp risks for the neighbouring property [2][6].

Conclusion: Don't Let the Green Rush Create a Legal Red Flag

The decarbonisation of Britain's terraced housing stock is urgent, necessary, and — when done properly — transformative. But the speed of the 2026 retrofit surge is creating real risks for homeowners who treat party wall obligations as an afterthought. Party Wall Surveying for Mid‑Terrace Retrofits: Heat Pumps, External Insulation and the Party Wall Act is not a bureaucratic hurdle — it is a legal framework designed to protect both the building owner and their neighbours from the unintended consequences of shared-wall construction.

Actionable Next Steps

Start early. Engage a chartered party wall surveyor at the feasibility stage, not after the heat pump has been ordered.
Get a pre-works survey. A professional schedule of condition protects everyone before a single drill bit touches shared masonry.
Understand what triggers the Act. Heat pump brackets, EWI junctions, condensate drains, and concrete pads can all be notifiable works.
Budget correctly. Include party wall surveying fees, notice periods, and potential award costs in every retrofit financial plan.
Work with qualified professionals. RICS-accredited surveyors with retrofit and party wall expertise are the right advisors for this increasingly complex intersection of property law and green building technology.
