Retrofitting EV charging into an existing building costs 40–60% more than installing it during original construction — and the primary reason is defects that nobody spotted before the work began [6]. As the UK's electric vehicle fleet continues its rapid expansion in 2026, property owners, lenders, and investors are discovering that Level 3 Building Surveys for EV Charging Retrofit Risks: Defect Detection and Valuation Impacts 2026 are no longer a niche specialist product. They are fast becoming an essential step in any credible pre-purchase or pre-works due diligence process.
The IEA's Global EV Outlook 2026 confirms persistent challenges in retrofitting existing buildings — particularly multi-unit dwellings — where distribution boards, structural penetrations, and ventilation systems were never designed with high-load charging in mind [8]. When those hidden constraints surface mid-project, they drive up costs, delay completion, and can materially affect a property's value and insurability.
This article explains what a Level 3 survey covers in the context of EV charging retrofits, which defects matter most, and how surveyors and valuers are adjusting their approaches in 2026.
Key Takeaways 📋
- Retrofitting EV charging into existing buildings is 40–60% more expensive than new-build installation, largely because of defects uncovered during detailed surveys [6].
- Level 3 Building Surveys are the most thorough inspection available and are uniquely suited to identifying the structural, electrical, and fire-safety risks that EV charging retrofits expose.
- UK Part S Building Regulations now mandate EV chargepoints in many new-builds and major renovations, raising the bar for existing stock assessments.
- Defects identified during surveys — such as overloaded panels, inadequate fire-stopping, and drainage risks — can directly reduce a property's assessed market value.
- Party wall, planning, and insurer scrutiny are adding new layers of complexity to urban EV retrofit projects in 2026 [5].

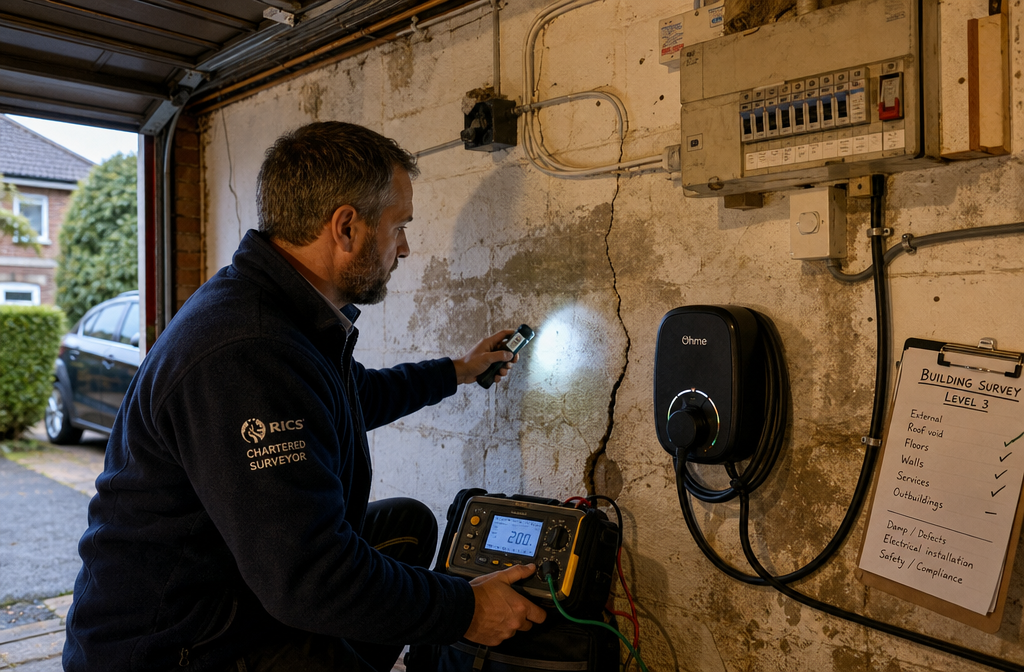

What Is a Level 3 Building Survey and Why Does It Matter for EV Retrofits?
A Level 3 Building Survey — also known as a Full Structural Survey or RICS Building Survey — is the most detailed inspection available for residential and commercial property. Unlike a Level 2 Home Survey, it includes invasive investigation where accessible, covers all visible and accessible elements of the structure, and produces a detailed defect report with repair recommendations and cost guidance.
To understand the difference in depth between inspection types, the guide to Level 2 vs Level 3 surveys explains why older, complex, or altered buildings almost always warrant the higher-level inspection. In the context of EV charging retrofits, that distinction becomes critical.
Why does EV charging demand this level of scrutiny?
Installing a home or commercial EV charger is not simply a matter of mounting a box on a wall. It involves:
- Assessing the main electrical supply and whether the service head can handle additional load
- Tracing cable routes through walls, floors, and ceilings — often through historic fabric
- Identifying structural penetrations that may compromise fire compartmentation
- Checking ventilation in enclosed or semi-enclosed parking areas
- Evaluating drainage near charger bases, particularly in basement or underground settings
- Confirming earthing and bonding arrangements meet current standards
Building codes across multiple jurisdictions now embed "EV-ready" requirements into new construction, but existing buildings are largely exempt until major works trigger compliance [1]. This gap means that a Level 3 survey is often the only mechanism that systematically surfaces the latent defects that would otherwise remain hidden until a charger installation is underway.
💡 Pull Quote: "Where EV-enabling provisions are missing from the existing fabric, owners should expect more invasive remedial works — and these capital requirements are now material to asset valuation." — Atlas Public Policy, 2025 [6]
For commercial and mixed-use assets, a RICS commercial building survey provides the equivalent depth of investigation, with additional focus on compliance, fire strategy, and planned maintenance liabilities.

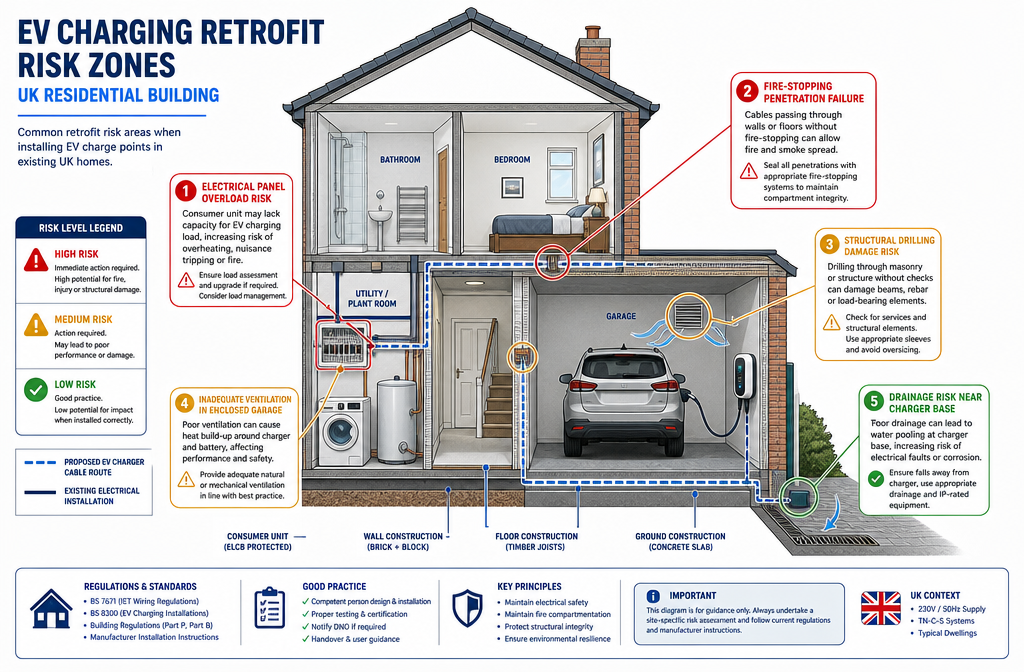

Defect Detection: The Six Risk Categories Surveyors Assess in 2026
Level 3 Building Surveys for EV Charging Retrofit Risks: Defect Detection and Valuation Impacts 2026 centre on six distinct risk categories. Each one can independently stall a project, increase costs, or affect a property's marketability.
1. ⚡ Electrical Capacity and Distribution Board Condition
This is the most commonly encountered constraint. Many UK properties built before 2000 have main fuses or consumer units that are already operating close to their rated capacity. Adding a 7kW or 22kW EV charger without upgrading the supply can cause nuisance tripping, equipment damage, or — in the worst cases — fire.
A Level 3 survey will assess:
- Main service head amperage (typically 60A or 100A in older homes)
- Consumer unit age and type (older fuse boards lack the RCD/RCBO protection required)
- Available spare ways for a dedicated circuit
- Tails condition — undersized or degraded tails are a common latent defect [9]
The UK's Part S Building Regulations now require EV chargepoints in new homes and major renovations, which is indirectly raising expectations for existing stock assessments [9]. Surveyors are increasingly expected to flag electrical constraints as material defects, not minor observations.
2. 🔥 Fire-Stopping and Compartmentation
Cable routes for EV chargers frequently pass through walls, floors, and ceiling voids. In older buildings — particularly converted flats, terraced houses, and commercial premises — these penetrations can compromise fire compartmentation that was never designed to accommodate them.
Insurers are scrutinising this issue closely in 2026. Reporting from multiple markets shows local authorities and building owners facing pushback on poorly sited chargers, while underwriters increasingly examine fire-separation and cable routing in enclosed car parks [7]. A Level 3 survey should identify:
- Combustible materials near proposed charger locations
- Existing penetrations that have not been properly fire-stopped
- Proximity to gas meters, fuel lines, or flammable storage
Where fire-stopping defects are found, remediation costs can be significant — and failure to address them can invalidate building insurance.
3. 🏗️ Structural Penetrations and Masonry Condition
Drilling through walls and floors to route conduit is routine in EV installations, but in buildings with ageing masonry, existing cracks, or non-standard construction, it carries real structural risk. A 2026 practice note for surveyors highlights the need for Level 3-style building pathology assessments — covering cracking, moisture ingress, and vibration risk from drilling — when EV cabling traverses or anchors into shared or ageing fabric [5].
A specific defect report can complement a full Level 3 survey where a particular structural element needs targeted investigation before drilling commences.
4. 💧 Drainage and Moisture Ingress
Charger bases installed in garages, basement car parks, or external wall positions are vulnerable to water ingress. Poor drainage can lead to electrical faults, corrosion of equipment, and — in enclosed spaces — standing water that creates shock risk.
A Level 3 survey will assess:
- Existing drainage provision at the proposed installation point
- Damp or moisture penetration in walls and floors near the charger location
- Ground conditions for any external feeder pillar or cable trench
5. 🌬️ Ventilation in Enclosed Parking
Hydrogen gas can accumulate during charging of older battery types, and heat build-up is a concern with high-power DC fast chargers. Building regulations require adequate ventilation in enclosed parking areas where EV charging takes place. Many older garages and basement car parks do not meet current standards without modification.
6. 🔧 Party Wall and Shared Boundary Complications
In dense urban settings, running new cabling or mounting chargers on shared walls can trigger the Party Wall etc. Act 1996. Specialist surveyors report that these issues are emerging as a discrete risk category in 2026 [5]. Works that affect a party wall or party fence wall require notice, and disputes can delay projects by months while negatively affecting perceived marketability.
For properties where shared boundaries are involved, understanding party wall obligations before committing to an EV installation plan is essential.
How EV Retrofit Defects Affect Property Valuation in 2026
The connection between defect detection and valuation impact is now well established. Level 3 Building Surveys for EV Charging Retrofit Risks: Defect Detection and Valuation Impacts 2026 are increasingly being used not just to plan works, but to inform mortgage valuations, investment appraisals, and asset disposal strategies.
The Positive Value Case
When a property has a compliant, well-integrated EV charging installation — with adequate electrical supply, proper fire-stopping, and no structural compromise — it is increasingly treated as a valuation-positive amenity. Research published in 2026 shows that homes with EV charging infrastructure sell faster and at a modest premium in markets where EV ownership is high [2]. PwC projects the US EV charging market could reach tens of billions of dollars by 2030, with real-estate players who proactively integrate compliant charging capturing rent and asset-value premiums [10].
Consumer data reinforces this: around 65% of respondents in the 2025 S&P Global Mobility Electrification Consumer Survey said charging infrastructure is insufficient, and 47% of EV owners reported problems using public chargers [3]. Properties offering reliable private charging therefore stand out.
The Negative Value Case
Where a Level 3 survey identifies significant defects or constraints, the valuation picture reverses. The table below summarises how common defects translate into valuation impacts:
| Defect Identified | Likely Remediation Cost | Valuation Impact |
|---|---|---|
| Undersized main fuse/service head | £1,500–£4,000 | Moderate negative |
| Aged consumer unit requiring replacement | £800–£2,000 | Moderate negative |
| Fire-stopping failures in cable routes | £500–£5,000+ | Significant negative |
| Structural cracking near penetration points | £2,000–£15,000+ | Significant negative |
| Inadequate ventilation in enclosed garage | £1,000–£8,000 | Moderate negative |
| Party wall dispute risk | Variable (legal costs + delay) | Reputational/marketability risk |
| Drainage deficiency at charger base | £500–£3,000 | Minor to moderate negative |
For lenders, these costs represent capital expenditure risk that can affect loan-to-value calculations. For buyers, they represent negotiating leverage. For vendors, they are best identified and addressed before marketing — which is precisely why commissioning a RICS Building Survey before listing a property with an existing or planned EV installation is sound commercial practice.
Reliability Regulation and Institutional Scrutiny
For commercial and mixed-use assets hosting semi-public DC fast charging, reliability is now a financial metric. Funding bodies in multiple jurisdictions are tying grants to uptime and safety requirements, making poor-quality installations a direct financial risk [4]. Institutional investors and lenders are responding by requiring technical due diligence — including Level 3-style pre-installation surveys — as a condition of committing capital to EV retrofit programmes [10].
A Red Book Valuation for investment-grade assets now routinely considers EV infrastructure quality as part of the broader assessment of building compliance and future capital expenditure liability.
Practical Protocol: What a Pre-Installation Level 3 Survey Should Cover
For property owners, developers, and asset managers planning EV charging retrofits in 2026, the following protocol represents current best practice:
Stage 1 — Desktop Review
- Review existing electrical installation certificates and any previous survey reports
- Check planning history for any conditions affecting external works
- Identify party wall implications from proposed cable routes
Stage 2 — Level 3 On-Site Inspection
- Full inspection of consumer unit, tails, earthing, and bonding
- Visual and, where appropriate, invasive inspection of proposed cable routes
- Assessment of structural elements at penetration points
- Moisture and drainage survey at charger base locations
- Ventilation assessment for enclosed or semi-enclosed parking
- Fire-stopping condition check at all existing and proposed penetrations
Stage 3 — Defect Reporting and Cost Planning
- Itemised schedule of defects with repair cost estimates
- Prioritisation of works required before charger installation
- Recommendations for load management systems where panel capacity is marginal
- Flagging of any party wall notice requirements
Stage 4 — Valuation Advice
- Adjusted valuation reflecting identified defects and remediation costs
- Assessment of post-remediation value uplift from compliant EV installation
- Input to lender or investor due diligence pack
For properties with complex roofing arrangements above parking structures, a roof survey may be required as part of the broader Level 3 inspection to assess waterproofing and structural loading implications of any rooftop cable routes or solar-EV hybrid installations.
For commercial landlords managing multiple units, a stock condition survey can provide a portfolio-wide baseline from which EV retrofit priorities can be systematically planned and budgeted.
Conclusion: Actionable Next Steps for Property Owners and Investors in 2026
The evidence is clear: Level 3 Building Surveys for EV Charging Retrofit Risks: Defect Detection and Valuation Impacts 2026 are not an optional extra. They are the most reliable mechanism available to identify the electrical, structural, fire-safety, and drainage defects that turn straightforward EV installations into costly, disruptive, and sometimes dangerous projects.
Here is what to do now:
- ✅ Commission a Level 3 Building Survey before any EV retrofit works begin — not after. Defects found mid-project cost far more to resolve than those identified in advance.
- ✅ Ensure the surveyor has specific experience with EV charging installations and understands the electrical, structural, and fire-safety dimensions.
- ✅ Address party wall implications early — identify shared boundaries in the proposed cable route and serve notices where required.
- ✅ Use the survey report to inform your valuation — whether buying, selling, refinancing, or appraising for investment, defect data should be reflected in the numbers.
- ✅ Plan for load management — where panel capacity is marginal, a dynamic load management system may be a more cost-effective solution than a full supply upgrade.
- ✅ For commercial assets, integrate EV retrofit due diligence into your standard pre-acquisition checklist — institutional lenders and investors are increasingly expecting it.
The cost of getting this right upfront is a fraction of the cost of getting it wrong. In a market where EV charging is shifting from a luxury feature to a baseline expectation, the quality of the underlying installation — and the survey that underpins it — will increasingly separate assets that command premiums from those that carry discounts.
